Nneɛma a wɔyɛ no parameters
|
PARAMETER NKYERƐKYERƐMU |
SUPPLY VOLTAGE A ƐWƆ HƆ |
NKYERƐKYERƐMU |
||
|
1.8V |
2.5V |
3.3V |
||
|
Frequency range a ɛwɔ hɔ |
0.137 ~ 125MHz na ɛwɔ hɔ |
0.137 ~ 133MHz na ɛwɔ hɔ |
0.137 ~ 166MHz na ɛwɔ hɔ |
32.768kHz na ɛwɔ hɔ |
|
Frequency a ɛyɛ den |
± 20ppm / ± 25ppm / ± 50ppm |
Hwɛ nsɛm a wɔakyerɛw wɔ ase hɔ no |
||
|
Ɔhyew a wɔde yɛ adwuma |
-10 kɔsi +60 digrii / -20 kɔsi +70 digrii / -40 kɔsi +85 digrii |
Nneɛma a wɔpaw kɔsi +125 degree |
||
|
Onyin afe a edi kan |
±3.0ppm na ɛwɔ hɔ |
@+25 abodin krataa |
||
|
Supply mprempren |
7 ~ 15mA na ɛyɛ |
8 ~ 18mA na ɛyɛ |
10 ~ 20mA na ɛwɔ hɔ |
1 ~ 30 ~ 75MHz @ 15pF na ɛwɔ hɔ |
|
25mA na ɛyɛ adwuma |
30mA na ɛyɛ adwuma |
35mA na ɛyɛ adwuma |
Ɛyɛ kɛse sen anaasɛ ɛyɛ pɛ 75 ~ 133MHz @15pF |
|
|
--- |
40mA na ɛyɛ adwuma |
45mA na ɛyɛ adwuma |
Ɛboro anaasɛ ɛne 133MHz @15pF yɛ pɛ |
|
|
Output asorɔkye ne adesoa |
LVCMOS 15pF na ɛwɔ hɔ |
30pF a wopɛ |
||
|
Output voltage level HIGH |
1.62V |
2.25V |
2.97V |
Nea ɛba fam koraa |
|
Output voltage level a ɛba fam |
0.18V |
0.25V |
0.33V |
Nea ɛsen biara |
|
Sɔre ne Ahwease mmere |
5ns |
5ns |
5ns |
1 ~ 100MHz @ 10 ~ 90% a ɛyɛ Vcc |
|
3ns |
3ns |
3ns |
Kɛseɛ anaasɛ ɛyɛ pɛ 100MHz @10~90% wɔ Vcc |
|
|
Symmetry (adwuma a wɔyɛ no kyinhyia) . |
45 ~ 55% anaa 40 ~ 60% |
@ 50%/Vcc na ɛwɔ hɔ |
||
|
Phase jitter RMS na ɛyɛ adwuma |
<1ps |
12kHz Ɛnsua anaasɛ ɛne Fj yɛ pɛ Ɛnnu anaasɛ ɛne 20MHz yɛ pɛ |
||
|
Hyɛ nso:Stability ka frequency deviations wɔ +25℃, wɔ ɔhyew kwan so, esiane supply voltage nti |
||||
Nneɛma a Wɔde Yɛ Adwuma
■ Nsusuwii nketewa 7.0x5.0x1.3 a solder pads 4 wom
■ Nneɛma a ɛgyina pintinn denneennen wɔ ɔhyew a ɛkɔ soro so
■ Tri-state ma/ gyae adwuma (pad 1) .
■ Kar a wodi AEC-Q200 so no wɔ hɔ
Nnwuma a Wɔde Di Dwuma
- 4-P Active Oscillator 7050-CO75H4 series no yɛ nea wɔde di dwuma wɔ DSL / WLAN / Ethernet, Notebook / PDA, Motherboard mu.
Mfaso a ɛwɔ nneɛma a wɔyɛ no so
Wide Temperature Adaptation a Ɛwɔ Hɔ
Adwumayɛ mu hyew a ɛkɔ soro kodu +125 digrii .
Tumi a Wɔpaw Pii
Nneɛma a wɔpaw a ɛyɛ mmerɛw a ɛyɛ 1.8V,2.5V, 3.3V.
abodinkrataa

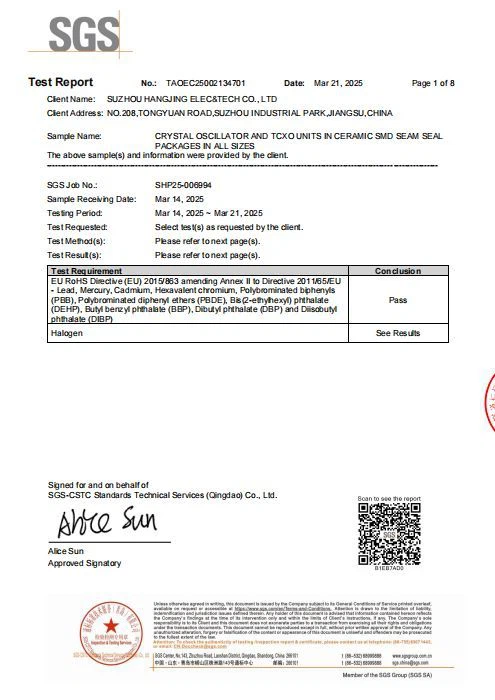

4-P Active Oscillator 7050-CO75H4 series no yɛ nea ɛne RoHS hyia, ENNI LEAD, HALOGEN-FREE na ɛne REACH hyia.
